Introduction

In this series, we will relate earth sciences to the ISG community to further our understanding of how the Earth and Sky work together. A deeper understanding of this can help you predict weather for route planning, understand the ingredients for severe weather, and help you plan for everything between a weekend getaway and natural disasters.

The Inupiat People called the Earth and Sky "Nuna and Sila", and they were said to have a soul. As some of the worlds most resourceful hunter-gatherers, the Inupiat survived on a deep, cultural understanding of how the earth and sky worked together to change the environment. In this article, we'll be discussing how this folklore relates to some basic principles of meteorology, and how the shapes of clouds and colors of the sky can help you determine not only what's happening now, but what will happen in the future.

Folklore and Forecasting

"Red Sky at Morning, solar radiation activating aerosols and lithometers suspended in the mid-level of the troposphere to the east" just doesn't have a ring to it.

Many people have heard the saying "red sky at night, sailors delight; red sky in morning, sailors take warning". There are a mess of these old colloquialisms, and you might be surprised to find there is some science behind them. It is also important to understand how wind direction and speed relates to the movement of air masses... and perhaps more importantly, the clash that occurs between these air masses.

First, let's discuss take some extremely complicated scientific concepts, and make them plain language:

The Causes

Weather is all about the exchange of hot and cold (large scale differential heating, to the science minded). To make these terms less ambiguous, we can say that -129 - +134 degrees fahrenheit is the full range of temperature on Earth. "We consider "warm" air is around 80 degrees F, whereas "cold" air is around 40 degrees F. It's important to know that these temperatures are always relative to one another.

Cold, polar air drifts southward, as warm tropical air moves northward, and we call these "air masses". Recall from physics a few properties of cold and warm:

  • Cold contracts and sinks, while;
  • Warm expands and rises.
  • Further, a "stable" environment is one in which the cold air is on bottom, and warm air is on top.

As these Air Masses move, the cold sinks and acts like a plow, throwing warm moist air upwards in the atmosphere. As this happens, that warm air - under less pressure as it rises - can expand and cool, where it condenses into water droplets.

The strength of this process determines whether we have simple cumulus clouds, or full on, mid-western style supercell convective complexes. If that previously warm, moist air is forced up and rapidly becomes colder than the surface air, we have dangerous instability.

Relating Radar to Reality

A radar image of the weather ahead of a expedition. Fortunately we were heading down to Fort Worth.
‍The Sky near Fort Worth not long after the Radar image; note the fairly uniform clouds, the lack of rain, and the 'look', this is "stable" alto-stratus, which is a stable cloud type that comes ahead of fronts.

A front is essentially the boundary at which cold collides with warm. There are two "fronts" in most classic instances: a warm front which pushes northward and brings warm air, and southerly winds; and a cold front, which brings cold air, and northerly (becoming northwesterly) winds.

With this basic understanding, we can tell quite a lot about what's going to happen just based on the wind field.

Look at the image to the left: If you were in fort Worth at this moment, you'd be dealing with southerly winds bringing warm, moist air up from the gulf. You can see the leading edge of snow moving into western Kansas - we can assume thats the cold, polar air we discussed.

Weather Effects

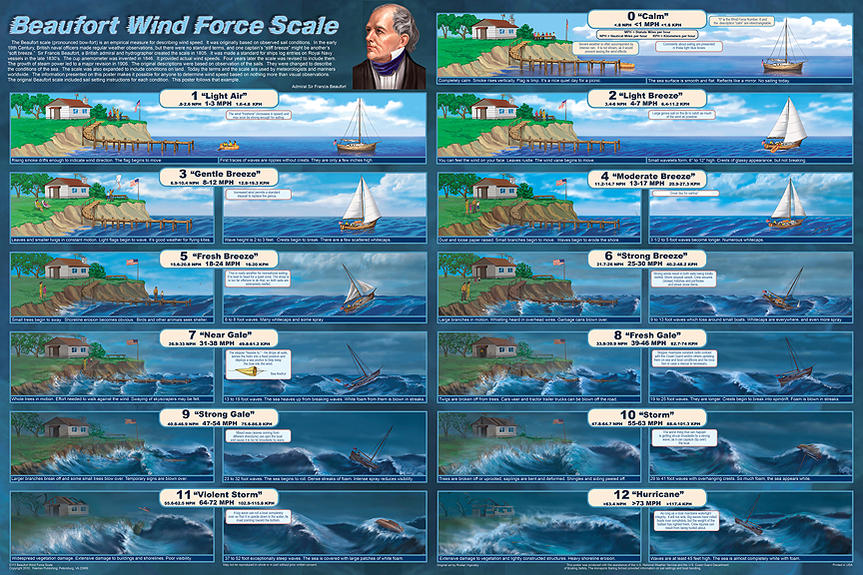

In addition to knowing some basics about how weather works, it's important to know that 'temperature' isn't straight forward. If you become wet, or affected by strong winds, for example. This NWS wind chill chart illustrates just how much. Likewise, it can be difficult to hear a wind speed, and correlate it to actual events. The "Beaufort wind scale" is represented in this excellent graphic, and should be looked at to fully understand the impacts of wind speed on structures and the environment.

  • Watch for "horsetails" in the sky. Usually, they're a sign of moisture that's been forced up to the top of the troposphere... unless you're in a mountainous region, fronts are the primary cause for that. They tend to be ahead of the front because the winds move faster up there (less friction).

  • Warm, moist wind from the southeast is an early sign of bad weather. When these winds shift more southerly, watch for their speed to increase; if it does, start planning for bad weather.

  • As the southerly winds pick up, watch for altostratus (the image to the right). This is generally a sign that a front is 12-36 hours out.

  • Pressure moves from high to low: High pressure is associated with stability (if it rains, it'll be drizzle) and low pressure is associated with showers and storms.

 These are some extremely basic principles to keep in mind, and they need to be meshed with an ability to read the clouds. For now, let's focus on some of the signs and effects.

FOLKLORE, SAYINGS, AND THEIR MEANINGS

...Red sky at night, sailors delight; red sky at morning, sailors take warning…

True.

Wildfire in Western Oklahoma produced smoke and red sky in Moore.

Red sky is a measure of how solar radiation interacts with gasses and particulates in the atmosphere.

The Red color of the sky occurs when solar radiation strikes particles and gasses and produces a certain wavelength of light. Most of the atmosphere is nitrogen and oxygen (which scatter to make the sky blue, a phenomenon called "Rayleigh scattering"), but at certain times of the day under certain air masses, the sun can hit just right and produce red and orange scattered light. Typically, pollutants, aerosols, and lithometers (particles) are much larger, and therefore scatter longer wavelengths than naturally occurring gasses.

When you see it to your east, (in the Northern Hemisphere) that means that light is scattering off trapped, midlevel gasses and the high pressure is moving off, and will be replaced with lower pressure, less stable air mass. The opposite, red sky at night, means that the stable column of air is moving towards you, and decent weather should result. They say that the coldest weather is generally 48 hours behind the passage of a cold front. That’s because high pressure and stable air indicates that the cold air is below the warm air. Because of this, we can expect ambient cold, generally accompanied by some sunshine.

So, bottom line without the geek speak: Red sky in the morning, high pressure is moving out. Red sky at night, high pressure is moving in.

NOTE: Red sky can also be a sign that there are fires to your west (winds blow from the west) which can give you some lead time if there's fires coming your way.

...Dew on the grass, high pressure will last...

True.

Low pressure - see how the smoke is rising quickly in a straight column?
‍High Pressure - notice the smoke is being "pushed" down?

Another proverb with some backing in science, the observation of water particles on the ground indicates that subsidence (the settling of cold air) has pressed moisture to the ground. This is a strong indicator of high pressure and generally indicates that you’re solidly under a stable air mass.

If there's moisture nearby (coastal climate, near a lake, recent rain, etc), this can be visible as fog or mist. Essentially, the high pressure traps the moisture, and light winds mix it up.

Another way we can see this effect is when smoke fails to rise. When under the influence of high pressure, smoke is 'pressed' towards the surface, whereas if your smoke rises quickly, the pressure is trending towards low.

So often times, when we come outside and there is dew on the grass, we can count on a day of stable, decent weather. High pressure can also be a boon for those caught in survival situations; you can collect the water generated by this phenomenon, such as the "solar still", which can supplement your water intake.

Bottom line: Dew on the grass is a surefire sign you're under high pressure, and weather should be stable. If there's a lot of moisture, you might see some morning fog, but expect weather won't turn severe within the next day or so.

...If you can’t see your shadow, rain is coming…

Ehhhh. Sometimes.

Basic concept: As light passes through various types of clouds, it can have different effects. Low clouds generally allow light to penetrate through to the surface, while very high clouds tend to be thin.

‍Diffuse Light through Altostratus

In the "mid" levels of the troposphere, where the temperature is cold enough to turn water vapor into ice crystals, stable banks of clouds are thick, and very reflective. Because of this, light won't easily penetrate them, and you may not be able to see a shadow. These types of clouds, called Altostratus (Alto: mid-level, Stratus: Stratiform, or stable) often occur in warm fronts in which the environment is still largely stable. This happens predominately as a cold front approaches, so not being able to see a shadow can mean a front is approaching.

Especially in the U.S. midwest, this can signify that you’re going to have a significant weather change, and more likely than not, some rain.

This one isn't without some hang-ups, however, and altostratus can occur without a weather change. For this reason, it's one of the less reliable indicators. Used in conjunction with other evidence of an approaching front, however, it can be useful!

Bottom Line: Altostratus can indicate a front, but it can also just be clouds. Take this one with a grain of salt, and watch for our other, more reliable indicators.

...Rain follows horse-tails...

A good indicator, but not an absolute.

The very high, wisps of clouds known as cirrus, or commonly “horsetails,” are really ice crystals that are in the upper levels of the troposphere. As cold fronts push water vapor aloft, the vapor freezes and comes under the influence of the fast-moving upper level winds. These winds can launch the ice crystals up, and they occasionally override higher pressure ahead of a front. Because of this, horsetails can be a sign that low pressure is coming. However, they could also be an expression of surface topography. Mountains and hills can lift moisture if surface winds are strong enough, so this one requires some knowledge of terrain.

‍Cirrus before a front; note how it curves upwards. This is the ice crystals overriding high pressure.

This is a reasonably reliable 'sign', but it's important to note that note a couple pitfalls of using this method:

1. Not all fronts are strong enough to produce bad weather, and;

2. Terrain can cause "orographic lift", which is when terrain 'launches' water vapor aloft. In mountainous regions, the front can also stall on the 'windward' (west, in the northern hemisphere) side, leaving horsetails but not front on the 'lee" (east, in the northern hemisphere) side.

For these reasons, use this as a first 'tip' that something could potentially develop over the next couple days. If you apply this principle with other signs (such as a strong southerly wind and rising temperature), you're going to be able to accurately determine what's coming along... and with a decent lead time.

Bottom line: If you see cirrus, use it as an indicator that something might becoming your way. Watch for those southerly winds, an increase in humidity, and the emergence of altostratus. It could just be some trapped moisture, but it's a useful 'first look' when used in conjunction with our other indicators.

CONCLUSION

This is just a bit of general wisdom that doesn’t get too specific, but it serves as a useful guide. The sayings in this article are not hard and fast rules, but rather a useful guide. Use them in the field and you may find yourself either verifying the conditions you planned for, or you may find yourself ahead of the conditions. Either way, we will continue this series with reading the sky and earth in future editions.

Aaron
