Introduction

Pinatubo Eruption, 1991

Of all the alarming natural disasters, perhaps none is so ominous as the super-eruption.

Injecting cubic tons of gas and tephra (ash and pumice ejected during an eruption) into the atmosphere halting travel with plumes of toxic gasses that could block out the sun. Such nightmare scenarios aren't all fiction, either.

The Toba eruption some 74,000 years ago was thought to have left the earth with as few as 1500 breeding pairs of humans. Imagine for a moment the conditions that would cause a genetic bottleneck of this magnitude:

  • A Volcanic winter that could last a decade.
  • Global temperatures rapidly drop, leading to widespread crop failure, such as those after the eruption of Mount Tambora in 1816.
  • Mass failure of photosynthesis, causing famines among animal populations and therefore;
  • Widespread famine in human populations.

Ask a Volcanologist, and the answer is clear: It's not a matter of "if" these eruptions occur, it's a matter of when...

Types of Eruptions

Before we go on to discuss the frequency, it's important to know the types of volcanic eruptions, and their severity. At their most basic, eruptions are categorized by:

  • Frequency, and;
  • Plume height/umbrella.

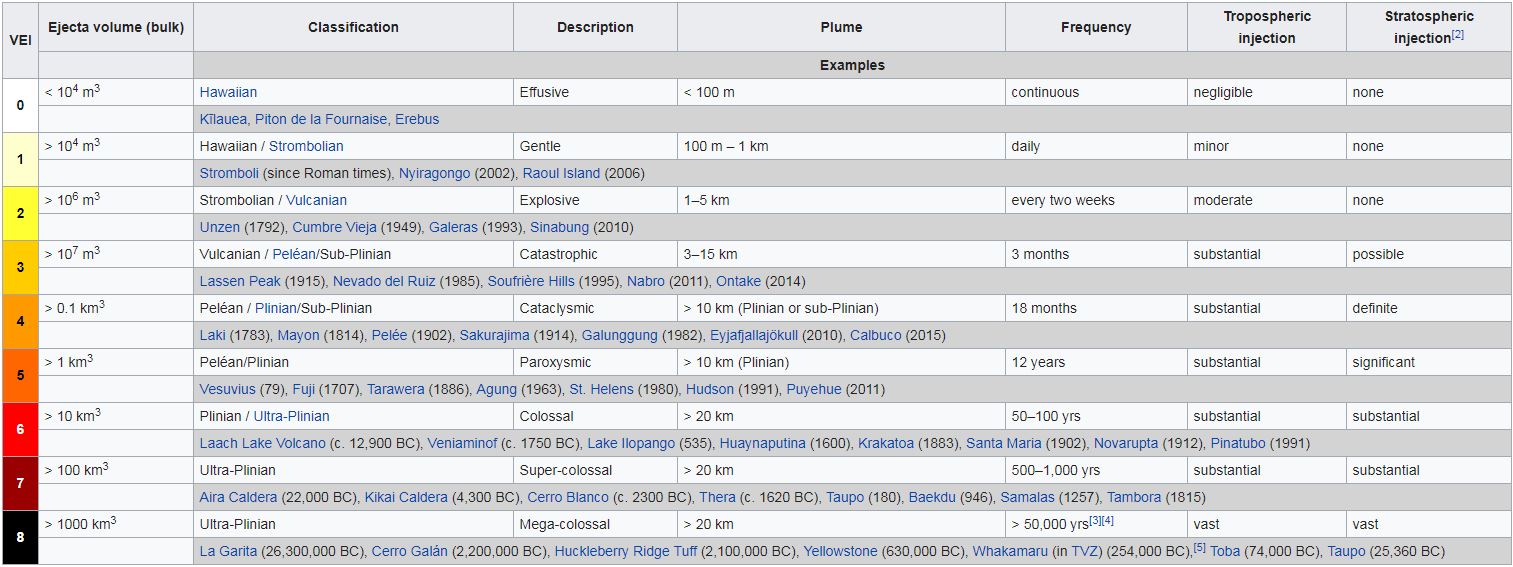

There's typically an inverse relationship between frequency and plume - the more often the volcano erupts, the less tephra is ejected per eruption. The following graphic details the classification, but more information can be found here, thanks to Oregon State University.

So from what we can tell, the most damaging eruptions occur on much longer timelines - 50,000 years or more. That doesn't mean we should clear the slate and stop thinking about volcanoes, however. Plinian and Ultra-Plinian eruptions cause major concerns, and could drastically alter the climate for periods of years or more.

Eruptions in these classes occur between 12-100 years, so it's likely we'll see something like this several times throughout our lifetimes, though they'll likely be localized emergencies of limited scope.

What we need to make note of is that these are broadly Type II emergencies; moderate duration events that will resolve on a shorter timeline. The Type III disaster that fundamentally changes life indefinitely can't be ruled out, but they're far less common.

Geological Time

So let's return to the question of "when". If you follow the news, every little rumble or change that goes on in Yellowstone is a sign of the impending super-eruption. The truth is, it's an active Caldera. Things happen. Things change. That's the way it is. While we shouldn't neglect that things *are* changing, we should measure our concern based on the speed and intensity of those changes.

"There's no Reason to believe we'll see one [Yellowstone Caldera Eruption] in our lifetime... it's more of an academic interest."

-Larry Mastin, United States Geological Survey Hydrologist and Volcano Expert, "Forecasting Ashfall Impacts from a Yellowstone Supereruption"

If you have any serious curiosity about the subject of the Yellowstone Supervolcano, you should watch the presentation by Dr. Mastin, but suffice to say, a Yellowstone Super-eruption is a very high impact, low probability event... even considering the cries of "overdue!"

Overdue in this case could mean an eruption is likely within 20,000 years, so while it's prudent to take the precautions we'd take with other emergencies (a structured, layered plan for sustainment, a reserve of provisions, and a way to move if necessary), the long term impacts of a disaster like a super-eruption would be largely left to chance. If you're on the North American Continent when the Yellowstone Caldera goes, your life will likely never be the same.

With that said, just looking at the history of the Yellowstone Caldera, it's most powerful eruption, the Lava Creek Tuff  estimates 400-1000 "Dense Rock Equivalent"... By way of comparison, the Toba Eruption was between 2000-3000 DRE.

What Happens?

"Mount Tambora ejected so much ash and aerosols into the atmosphere that the sky darkened and the Sun was blocked from view. The large particles spewed by the volcano fell to the ground nearby, covering towns with enough ash to collapse homes. There are reports that several feet of ash was floating on the ocean surface in the region. Ships had to plow through it to get from place to place."

As described above, anything with a VEI above a 6 could cause some major impacts to global stability. Unlike other natural disasters such as wildfires, earthquakes, and floods, the Super-eruption has the ability to impact entire regions, if not hemispheres. That makes them uniquely dangerous, and is something worth considering. However, the infrequency of such intense eruptions means there's not a whole lot you can do about them.

In the case of an eruption, the danger to humans comes in some distinct phases:

  1. Initial Explosion/Pyroclastic flow: If you're close enough to the source region, the super-heated gasses which give the volcano it's destructive power are the initial threat. Pyroclastic flow typically flows downhill, and as it moves, it destroys anything in it's path. The flow itself destroys trees and melts ice, which leads to;
  2. Mud flow: As the hot ash melts ice and turns vegetation into debris, flows of mud, downed timber, and hot ash threaten river valleys in the path of the eruption. These flows can destroy bridges, houses, and permanently alter the landscape. If your home is in a river valley, keep this in mind.
  3. Suspended Tephra: If you're caught in the plume from an eruption, expect that tephra (fragments of rock and pumice ejected during an eruption) will become a threat. Not only does it impact the respiratory systems of living creatures, but it's also very damaging to engines and machinery; this commonly causes problems with flights, or combustion engines. A mask capable of filtering particulates should be worn if you go outside during an event with suspended tephra. Expect that running your vehicle carries a risk of damage.
  4. Volcanic Winter: Similar in concept to the ominous "nuclear winter", Volcanic winter could occur if a VEI 7 or above eruption were to occur. While this could lead to massive destabilization, it's important to note that how we plan for this really isn't any different from our other Type II emergencies. A supply of food and drinkable water, a way to clean water, a plan for sanitation, and treatment of vitamin deficiencies would come into play in a Volcanic "Worst Case".

General Advice

If you're caught in the plume from an eruption, expect that tephra (fragments of rock and pumice ejected during an eruption) will become a threat. Not only does it impact the respiratory systems of living creatures, but it's also very damaging to engines and machinery; this commonly causes problems with flights, or combustion engines.

Wear a mask: If you don't have one available, a dampened cloth over the mouth and nose can be a stop-gap method.

The USGS prepared a Ash Mitigation for vehicles. You should read it, but here are some main takeaways:

  • Change oil often. In dense ash 50-100 mile intervals. In light ash, 500-1000. Plan accordingly.
  • Clean air filters using pressurized air, don't strike the filter against anything to clean it (frees trapped particles).
  • Don't place rags over intake, carburetor, or air cleaner: Serious engine damage could result.
  • Clean the vehicle, engine, radiator and other essential parts and electronics daily.

The article suggests using water to clean off the ash, but water will attract particles, and we would suggest that this might not be best practice. Compressed air seems like a safer bet.

If you live in a river valley near an active volcano, have a plan to get out quickly if it starts rumbling. Similar to a fire or flood evacuation plan, have a list, and staged goods that can quickly be loaded into your vehicle. Have a few planned routes, a method of communication that isn't reliant on cell towers, and some supplies staged. If you have friends who live in a place like that, offer them the same support if you're able.

Conclusion

While definitely a realistic threat, we shouldn't confine the volcanic emergency as simply "super-eruption"or "not important". There are varying degrees ranging from 'absolute Apocalypse' to 'interesting side-note'. What we can say is that our general template for emergency management still applies:

  • Have a plan
  • Have some knowledge
  • Have some supplies
  • Be flexible

At it's core, this is an emergency that could flex between the types, so it requires a bit more thought. However, given the rarity of the Super-eruption, we want to emphasize that terrorists aren't going to trigger an eruption, and the Russians probably can't, either.

If you want to know more, you can always stop by the USGS's page for Yellowstone, where they provide up to date information on the condition of the Park and Caldera.

Be vigilant and plan ahead,

Aaron
